Do-It-Yourself Desktop Troubleshooting
Save money by diagnosing and fixing computer problems yourself

You sit down at your desk, press your computer's power button, and nothing happens. You see no familiar flashing lights, hear no pleasant whirring sounds, and detect absolutely no signs of life. You pick up the phone and call your nonprofit's IT consultant, only to learn that she's on vacation for the next six weeks. As panic sets in, your mind races and you worry about how a visit to the computer-repair shop will adversely affect your nonprofit's already tight budget. But before turning to a high-priced technician or asking a consultant to take a look, follow our steps to solve the problem yourself -- or at the very least, narrow down its causes.

Explaining how to diagnose and rectify every specific computer problem under the sun could fill a very large (and exhausting) book. As such, this article focuses on troubleshooting four common scenarios that occur with Windows-based desktops:

1. Computer Won't Power Up
2. Computer Powers Up But Monitor Is Blank
3. Computer Won't Boot From Hard Drive
4. Windows Won't Boot or Crashes

To troubleshoot your computer, follow the steps in each section below in order, starting with the initial steps and moving on to the more advanced steps if you're comfortable doing so.
Before You Begin

The troubleshooting tips provided here range from often-overlooked "no-brainers" to more involved solutions that require you to open your computer's case and handle hardware components or delve deeper into Windows' core. Remember that your goal here is to solve an existing problem, not create a new one. If performing a certain action makes you uncomfortable, call in someone with more expertise. And if you do decide proceed with any of our Advanced Steps, please keep the following considerations in mind:

* Prior to opening your computer's case, check to see if the machine's warranty is still valid. If so, send it back to the manufacturer for repair, as digging around inside the case can void the warranty. You may also try calling your PC's manufacturer for tech support, especially if you've already paid for it. Often, tech support can provide quick fixes or will replace faulty components that are still under warranty. Many manufacturers offer online chat, email support, and other options in addition to phone support.
* Before making any hardware adjustments, take the appropriate safety measures. First, purchase an antistatic wrist strap and mat. While static electricity might sound like an annoyance only, it can severely damage your computer's internal components. You'll also want to make sure that you and your machine are both properly grounded, so keep the computer plugged into the wall but the power switch turned off when working with its internal components. As a final precaution, remember to hold on to the metal part of the computer's case when handling any electrical parts.
* Although all computers contain most of the same core internal components (hard drive, processor, RAM, graphics card, etc.), the locations of those components can vary from machine to machine. Before you reseat, remove, or replace any internal components, arm yourself with a working knowledge of computer components, what they do, and how they interact with one another. (To learn more, read How Stuff Works' article How PCs Work.)
* Hardware, BIOS (basic input-output system, built-in software that controls the keyboard, mouse, display, and other hardware and functions), firmware, and other software tools vary by manufacturer. Keep all of your computer documentation, driver CDs, and warranty information in a safe place. Be sure to dig out your computer's manuals before changing any settings.

Do-It-Yourself Desktop Troubleshooting Mother10

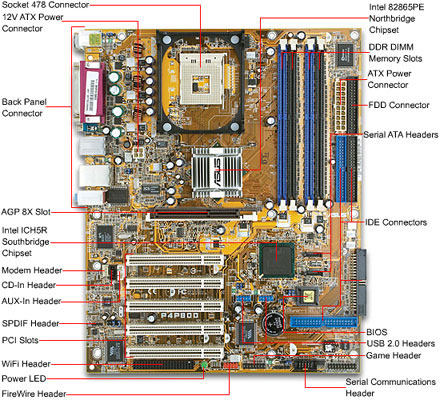

Diagram of a motherboard. Note that the location of these components vary,
depending on your motherboard.
Computer Won't Power Up
Initial Steps:

* Make sure that the PC's power cable is plugged firmly into a wall socket or power strip and that the power strip is on.
* Try plugging the PC or the power strip into another wall socket.
* Ensure that the power cable is firmly connected to the PC's power-supply outlet.
* Check to see that the power supply is switched to the "on" position.
* Make sure that the power supply is switched to the voltage appropriate to your region.
* Attach a working power cable to the PC's power supply and plug it in.
* Unplug all external devices from the PC -- including a CD drive or digital camera -- except the monitor. If the computer powers on without the devices, add the peripherals back in one at a time until you can identify the problem device.

If none of these steps solves the problem, check to see if your computer is still under warranty and send it back to the manufacturer. If the warranty has expired and you are comfortable doing so, proceed to the Advanced Steps below. Otherwise, talk to your volunteer consultant or use TechFinder to locate a nonprofit technology consultant in your area.
Advanced Steps:

* Unplug the computer and open the PC's case. Verify that the power supply is connected to the motherboard.
* Make sure that all internal cables are connected and that all of the PCI expansion cards and RAM chips are tightly seated.
* Examine the motherboard for noticeable signs of damage, such as cracks or burns. If you see problems, there's a good chance you'll need a new motherboard or a new computer. Consult a technician for further advice.
* Remove the RAM and PCI cards and unplug your hard drive(s). Depending on your drive, you'll see either a wide, flat, gray IDE cable; a thinner red Serial ATA (SATA) cable; or a round gray or black SCSI cable. Plug in the power cable. If the computer turns on, begin plugging in additional cables and modules until you identify the faulty component.
* Replace your power supply with a known working one or a with new one. (Read Smart Computing's How to Replace A Power Supply for guidance.)

If none of these steps work, your motherboard or processor is likely fried. Consider taking it to a repair shop or replacing the computer altogether.
Computer Powers Up But Monitor Is Blank
Initial Steps:

* Ensure that your computer can boot normally and that all of the usual power lights are on.
* Make sure that the monitor is plugged firmly into a working wall socket or power strip and that the power strip is on.
* Try plugging the PC or power strip into another wall socket.
* Verify that the monitor's power button is switched to the "on" position.
* Make sure the monitor's brightness and contrast controls are properly adjusted (check your monitor's manual for information on how to do this).
* Check to see that the monitor cable is plugged firmly into the back of the display and that the pinned end is tightly screwed into the computer's video output on the back of the case.
* Remove the existing cable and replace it with a known working monitor cable. Connect it to the display and to the computer.
* Obtain a working monitor and hook it up to your PC. If this display works, contact a technician or buy a new monitor. If the monitor does not work, your video card may not be working and you'll need to open the desktop's case.

If none of these steps solves the problem, check to see if your computer is still under warranty and find out how to send it back. If the warranty has expired, unplug the computer, open up the PC's case, and proceed to the Advanced Steps below.
Advanced Steps:

* Examine the video card for noticeable damage. If you spot defects or burnt components, you'll likely need a new video card.
* Reseat the video card.
* Inspect the RAM and all drive cables to make sure they are all tightly seated and connected. If you find loose components or connections, tighten them.
* If your display is still not working, contact a repair shop or consider replacing the video card (or try swapping in a compatible card). To replace the card yourself, read Acme How To's online guide.

Computer Won't Boot From Hard Drive (Doesn't Get to Windows Splash Screen)
Initial Steps:

* Make sure that there is no bootable media in your floppy or CD drive.
* Listen to make sure your hard drive is spinning. If you don't hear or feel motion, or if you don't see an error message on the screen, proceed to the Advanced Steps below.
* Remove all external drives or devices and try restarting the computer.
* If you receive a series of beeps or error messages, write them down, as they could be instrumental in diagnosing your problem. Beep codes vary by manufacturer, so consult your BIOS documentation for more in-depth info on what those beeps mean. (BIOS Central also has an exhaustive list of beep codes). Otherwise, proceed as follows:
* Enter your computer's BIOS (access key varies by machine; usually you'll need to push the F1 or Delete key as the computer boots) and write down the current settings before proceeding further.
* Keep an eye out for any built-in diagnostic tools; you might be able to find an error by using these.
* If no diagnostic tools exist, go to the BIOS's hard drive section and make sure it's configured as "Auto."
* If the BIOS has an autodetect feature, run it to make sure that it can actually detect your hard drive.
* If your BIOS has an optimized default option, try loading it and rebooting.
* If the BIOS has a failsafe default option, try loading it and rebooting.
* Attempt to enter your PC in Safe Mode. (As your computer boots, quickly press the F8 key.) If you can get in, run Windows' built-in diagnostic tool to check your drive for bad sectors and file system errors.
* While still in Safe Mode, scan your computer for viruses, Trojans, spyware, and other threats that could be causing problems.

If none of these steps solves the problem, check to see if your computer is still under warranty and find out how to send it back. If the warranty has expired, unplug the computer, open up the PC's case, and proceed to the Advanced Steps.
Advanced Steps:

* Make sure that the hard drive is firmly connected to both the power supply and the motherboard.
* Reseat the video card.
* Clear the CMOS by resetting the jumper on the motherboard. Before you do so, consult the motherboard or computer's documentation and be very careful while handling these components.
* If your computer has more than one stick of RAM, remove them all and try adding them back, starting with the slot closest to the processor. If the PC boots with one and not the other, you likely have a faulty stick of RAM.
* Make sure that the correct hard drive is set as the primary (master) drive and that the proper cable is connected. (See the back of the hard drive to set master and slave settings. KarbosGuide.com offers tips on how to do this.)
* Replace the hard drive cable(s) with known working ones.
* Remove the PC's main power supply and replace it with a known working one.
* If none of this works you may want to take the drive in for service or replace it altogether. If at all possible, back up your data first.

You might also find Smart Computing's BIOS troubleshooting guide helpful when dealing with a computer that won't boot from the hard drive.
Windows Won't Boot (After BIOS POST Has Been Completed) or Crashes
Initial Steps:

* Make sure that there isn't a disk in your floppy or CD drive.
* Remove external drives or devices.
* Enter the Windows Advanced Options menu by pressing the F8 key during the BIOS's Power-On Self Test (POST). Select the option for "Last Known Good Configuration." (Note: if this works, you will lose any recently installed software or newly created files.)
* Enter the Windows Advanced Options menu, boot into Safe Mode with networking, and perform a system restore.
* While in Safe Mode run your antivirus and anti-spyware programs. Remove any detected threats.
* If that fails, attempt to back up your data using back-up software, burn files to a CD, or consult a professional. You may eventually have to reformat your hard drive and reinstall Windows.

Advanced Steps:

* Enter the Windows Advanced Options menu and choose the option that enables the bootlog. Restart, then boot into Safe Mode to compare the new bootlog and the original one. If you get error messages that certain drivers aren't loading correctly, write those down, and update or remove the faulty devices via Windows' Device Manager. You can then reinstall the drivers manually or ask Windows to locate a driver for the device.
* Insert your Windows Emergency Startup disk or the original CD-ROM and go to the Recovery Console. From there, you can attempt to restore the master boot record, the first logical sector on your hard drive where the BIOS loads a program to boot your computer.
